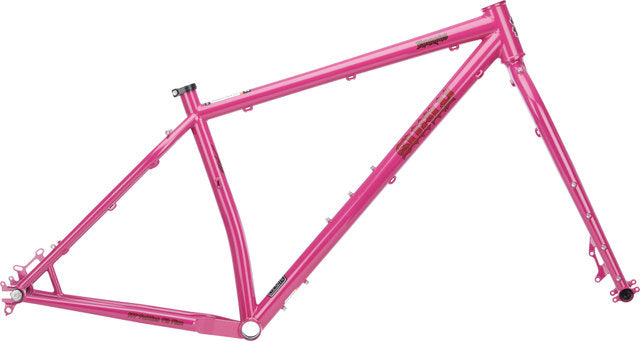

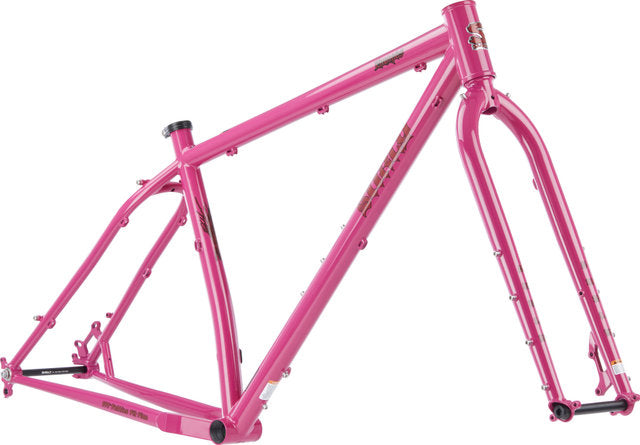

Product Description The wild ride begins: The Krampus Frameset by Surly The Surly Krampus frameset, the first " plus bike" of its kind, has kept up with the times: thanks to Gnot Boost Spacing you can ride the exact rear hub that fits you, whether 10 x 135 mm, 12 x 142 mm or 12 x 148 mm Boost. With its long head tube and compact chainstays, the Krampus will bring any trail to its knees. The double-butted, partially tapered tubes give it stiffness without affecting its weight. Of course you can mount an adjustable seatpost and 3" tyres - so you can have even more fun with this wild stallion. Specifications:Application:Trail, Cross CountryWheel Size:29+Size:S, M, L, XLMaterial:steel (Surly 4130 CrMo)Technical Information:Rear Over Locknut Dimension:142 mm, 148 mm (Gnot Boost)Axle Type:12 mm thru-axleSeatpost (Ø):30.9 mmSeatpost Clamp(Ø):33.1 mmHeadset:ZS44/28.6-EC44/30Steerer tube rec.:1 1/8"Fork Axle to Crown:483 mmRecommended Fork Travel:120 mmBottom Bracket Standard:BSAShell Width:73 mmBrake Mount:disc ISFront Derailleur Mount:Direct Mount (High-Direct)Bottle Cage Mounts:2Accessory Mounts:braze-ons for racks, fenders, dropper post cable routingTechnical Information - Fork:Steerer Tube:1 1/8"Axle Type:thru-axle (15 x 110 mm)Brake Mount:disc ISOffset:47 mmAxle to Crown:483 mmOver Locknut Dimension:110 mm (Boost)Crown Race Diameter:30 mmSteerer Tube Material:steelBlade Material:steelAccessory Mounts:bottle cage mounts, braze-ons for racks & fendersApproved For:Weight Limit:136 kg rider weight, 2.3 kg gear, 138 kg total weightRotor Size (max.):203 mm (front), 180 mm (rear)Tyre Size (max.):3.0"Chainrings:2x, 1xChainring Size (max.):2x 24-36 t Boost, 1x 30 t BoostFork Axle to Crown Size (max.):483 mm (for rigid forks), 550 mm (for suspension forks)Features:TIG-welded, ED-coateddouble-butted main trianglehorizontal and vertical slotted dropoutscable guides for Vario supportsASTM Category 3 Note:For sizes S and M, the seatstays are welded to the top tube in front of the seat tube. For sizes L and XL, they are welded directly to the seat tube. This is by design and is related to the necessary tyre clearance.Technology:Gnot Boost: The Surly Gnot Boost technology allows the mounting of different over locknut dimensions on the rear wheel. Rear wheels with 12 x 142 mm or 12 x 148 mm thru-axles can be mounted by clamping or spreading the frame. Wheels with an over locknut dimension of 135 mm can be operated in frames with Gnot Boost technology using the rear wheel axle adapter. Manufacturer's Notice:When choosing your frame size you should take into account that Surly does not measure the seat tube specifications to the end of the seat tube. For frames with struts on the top tube, this is measured from the middle of the bottom bracket to above the struts. For frames without struts, measure from the middle of the bottom bracket to the top edge of the top tube. Models:S: Recommended Height:162 - 173 cmStack:593 mmReach:404 mmSeat Tube Length:368 mmTop Tube Length:556.8 mmEffective Top Tube Length:585 mmHead Tube Length:90 mmChainstay Length:435 mmWheelbase:1087 mmBB Drop:65 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:770 mm M: Recommended Height:170 - 183 cmStack:602 mmReach:426 mmSeat Tube Length:419 mmTop Tube Length:573 mmEffective Top Tube Length:610 mmHead Tube Length:100 mmChainstay Length:435 mmWheelbase:1113 mmBB Drop:65 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:797 mm L: Recommended Height:180 - 190 cmStack:612 mmReach:448 mmSeat Tube Length:470 mmTop Tube Length:595.1 mmEffective Top Tube Length:635 mmHead Tube Length:110 mmChainstay Length:435 mmWheelbase:1138 mmBB Drop:65 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:825 mm XL: Recommended Height:188 - 198 cmStack:621 mmReach:470 mmSeat Tube Length:521 mmTop Tube Length:621.8 mmEffective Top Tube Length:660 mmHead Tube Length:120 mmChainstay Length:435 mmWheelbase:1164 mmBB Drop:65 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:854 mmContents:1 x Surly Krampus frame1 x Surly Krampus fork1 x Surly stainless steel seatpost clamp1 x Surly HU0138 front thru-axle1 x Surly HU0134 rear thru-axlenot incl. Gnot Boost rear axle adapter Manufacturer: Surly 6400 W 105th St Bloomington MN 55438 USA derby@surlybikes.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
