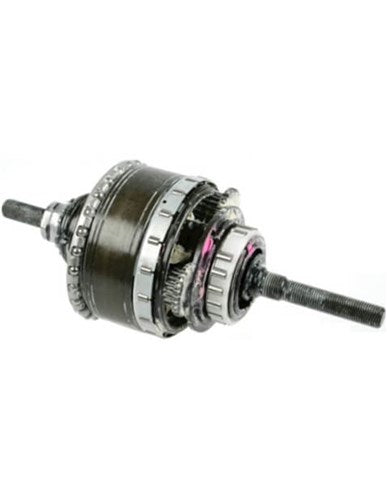

Shimano binnenwerk Nexus 8v SG-C6001-8 Disc-brake 187mm
- Aslengte: 187 mm
- Model: SG-C6001-8D (Nexus 8 met Center Lock remaansluiting)
- Y34R79000 Stop ring (diameter 12 mm / 1.0 mm)
- Y34R79010 Stop ring (diameter 12 mm / 1.3 mm)
- Y34R79020 Stop ring (diameter 12 mm / 1.6 mm)
- Y3EH98030 Ring gear unit
- Y3EH98040 Carrier unit
- Y36V22000 Ring gear 1
- Y34R80000 Ring gear 1 stop spring
- Y38X98050 Ball retainer O (3/16" x 26)
- Y3EK98020 Hub axle unit (axle length 187 mm)
- Y34R98050 Clutch unit
- Y34R21000 Return spring A
- Y37J98020 Driver unit
- Y34R98070 Ball retainer P (3/16" x 13)
- Y37J98080 Right hand cone with seal
- Y34R12000 Driver plate
- Y34R98090 Lock washer
- Y34R09000 Stop washer
- Y35Z11000 Right hand serated lock nut (5.4 mm)
- Shimano nexus 8 binnenwerk sg-c6001-8d disc y1ek98010
