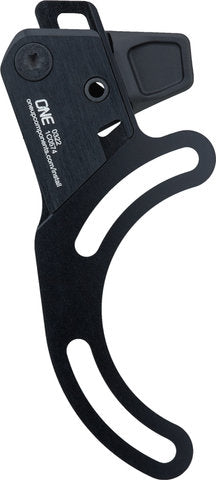

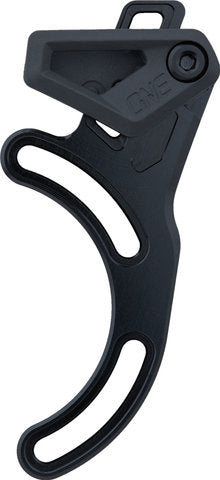

Oneup components bosch e-chainguide

Product Description - For e-bikes with Bosch motors OneUp Components has developed the E-Chainguide for E-MTBs with Bosch motors. It helps you prevent the chain from falling off even on rough ground. The chain guide can be easily mounted directly on the motor with a 4 mm hex key, even without removing the crank. Chainrings from 32 to 38 teeth are compatible. The chainline can be adjusted by up to 6 mm via spacers. The upper part of the guide can be removed without tools, giving you easy access to your chain. The model also scores with its low weight, which is due to the combination of aluminium backplate and composite top guide. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:All Mountain, Cross CountryMaterial:aluminium (7075), compositeMount:ISCG 05Chain Guide Capacity:32 - 38 teethCompatibility:BoschAdjustment Options:Chainline Adjustment:6 mmNote from the manufacturer:Not compatible with the 2021-model Orbea Rise aluminium frame. Features:Top Guide features tool less flipmount without removing the cranksdirect attachment to the Bosch motorinstall and adjust using just one tool (4 mm hex key)indicator (chain link image on inside of guide) for easier installationbody made of aluminium, top guide made of fibreglass-reinforced thermoplasticblack stainless steel screwsManufacturer Number:1C0698 Contents:1 x 4 x bolts3 x chainline shims2 x spacers1 x distance measuring tool4 x washers Weight: black | 32 - 38 T | ISCG 05: 45 g Manufacturer: OneUp Components Inc. Unit #1 1225 Industrial Rd West Kelowna BC V1Z 1G4 Canada support@oneupcomponents.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
