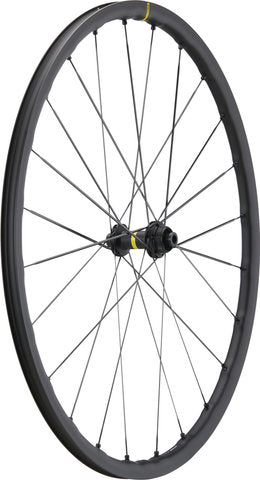

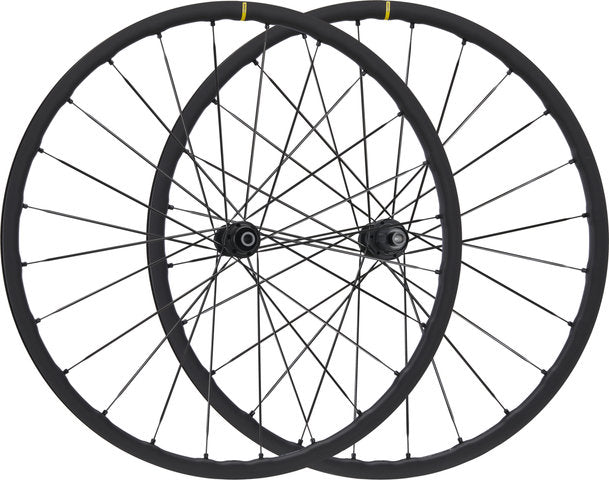

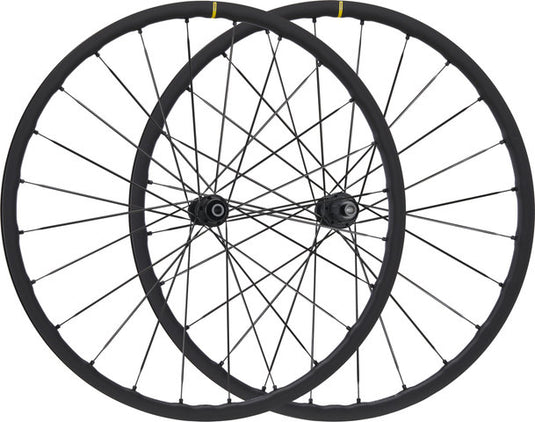

Product Description The Mavic Ksyrium SL Disc Wheelset - Lightweight, stiff and durable The Mavic Ksyrium SL Center Lock Disc is a disc brake-compatible wheelset for ambitious road cyclists, whose development was very much focused on weight savings. It also scores with stiffness, driving dynamics and durability. The Ksyrium SL is based on 19 mm wide aluminium rims that can be ridden without a tube. This results in advantages such as more puncture resistance, less rolling resistance and an even lighter wheel. At the centre, hubs with self-aligning bearings and optimised spoke holes are fitted with 24 double butted straight pull spokes each at the front and rear. Special rim bed technology eliminates the need for tubeless rim tape. Specifications:Application:RoadWheel Size:28"Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:UST Road TubelessTechnical Information - Rim:Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:22.5 mmDepth:25 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information - Front Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 100 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumTechnical Information - Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 142 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Instant Drive 360Technical Information - Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight pull / double-buttedSpoke Size:294 mmSpoke Material:steelNipple Type:Fore, integratedNipple Material:aluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):see specifications on wheel and tyre (if different take the lower value)Recommended Tyre Width:25 - 32 mm * recommended for increased durability Features:super light and durable for competition and training performancelaterally stiff and vertically compliant for a more dynamic rideuser-friendly tubeless system for more comfort and controlrim profile optimised for disc brakesspecial milling process for weight reductionrim joint welded (SUP)Infinity hub design for optimal lacingaluminium axlesfront optionally convertible to quick release with separately available adapters, not compatible with 15 mm thru-axlesrear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adaptersrear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapterextra-light Shimano freehub body optionally availableno rim tape required thanks to Fore technologyASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:Maxtal Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims. SUP SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel. ISM 4D The ISM 4D (Inter Spoke Milling 4 Dimensions) milling process noticeably reduces weight and inertia without sacrificing durability. Mavic's exclusive patent also provides better aerodynamics with its new rim profile. ISM 4D rims are up to 50 g lighter and therefore offer more climbing performance. Their minimal inertia leads to maximum acceleration. Their extra aerodynamic rim profile results in significantly lower air resistance. Infinity Hub Design Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given. QRM Auto QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times. Instant Drive 360 The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction. Fore Tapeless Tubeless Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings. Models:28" set (front 12x100 + rear 12x142) Shimano: Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Installing 8-/9-/10-speed cassettes on Shimano freehubs requires a 1.85 mm spacer.Manufacturer Number:P1336155Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required. 28" set (front 12x100 + rear 12x142) SRAM XDR: Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:P1472160Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required.Contents:1 x Mavic Ksyrium SL Disc wheelset (front and rear)2 x UST valve with accessories Weight: black | 142 mm | 100 mm | 28" | Shimano Road | 100 mm | Shimano Road | 100 mm | 142 mm: 1575 g Manufacturer: Mavic Group Germany GmbH Geigelsteinstraße 10 83080 Oberaudorf Germany info@mavic.com
