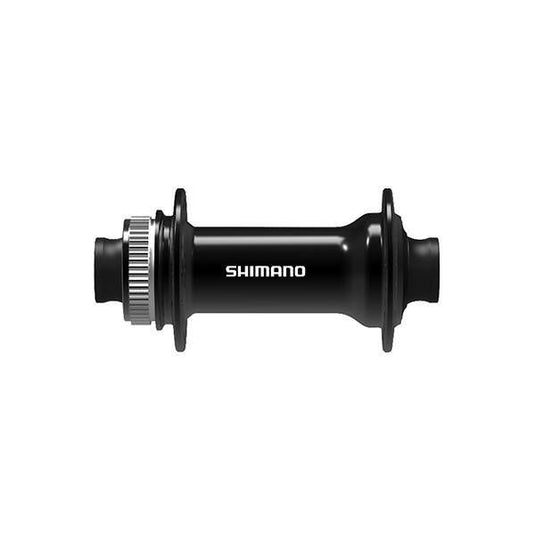

Stijve en lichte voornaaf voor betrouwbare trailprestaties. Kenmerken Eenvoudige installatie en betrouwbare trailprestaties Eenvoudige installatie van remschijf dankzij gekarteld montagegedeelte en borgring Stijf en lichtgewicht 15 millimeter E-THRU steekassysteem Labyrint- en contactafdichtingen Vorkafstand: 100 mm #13 en #14 spaak compatibel Specificaties: Modelnummer: HB-TC500-15 Serie: ALTUS M310 Serie Kleur naafhuis: Zwart Type rem: CENTER LOCK schijfrem Vorkafstand (mm): 100 Spaakgaten: 32 stuks Borgring schijfrem met externe inkeping: Ja Bevestigingsmethode as: 15 mm E-THRU Steekas (lengte x binnendiameter: 100 x 15 mm Flensafstand: 60,2 mm Offset: 5,3 mm BCD Links/rechts: 44/44 mm Flensdiameter links/rechts: 52,8 mm Afdichting: Labyrinth+Contact Product Description HB-TC500-15-B Boost front hub from Shimano - for MTBs and touring bikes with and without a motor HB-TC500-15-B is a high-performance front hub for mountain and touring bikes with center lock brake rotors and 15 x 110 mm Boost width at the front. Shimano recommends them as a supplement for 10- to 12-speed drivetrains at SLX and Deore level. However, it also fits CUES 9-speed, 10-speed and 11-speed drivetrains or 8-speed setups at Acera and Altus level. The hub is approved for use on e-bikes and is recommended by Shimano for the EP8 and EP6 series. It features an appropriate ratio between weight and stiffness as well as solid cartridge bearings. A double sealing system extends the service life. The hub body is made of lightweight aluminium with an anodised finish. Use this hub for spoke diameters of 2 or 2.3 mm. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:All Mountain, City & TouringBrake Type:Center Lock DiscWheel Standard:BoostTechnical Information:Body Material:aluminiumBearings:cartridgeSeals:labyrinth and contact sealsSpoke Hole Diameter:2.0 mm / 2.3 mmFeatures:Center Lock Disc front hub for thru-axle mounting (15 x 110 mm, Boost)recommended for SLX 12-speed and Deore 10- to 12-speed drivetrainsrecommended for CUES 9- to 11-speed drivetrains and Acera / Altus 8-speedapproved for e-bikes: recommended for EP8 (EP801 and EP800), EP6reliable performancestiff, lightweight E-Thru designdouble sealedeasy brake rotor mounting due to toothing and lockring (not included in delivery)compatible with 13G and 14G spokes5.3 mm offsetflange diameter on both sides 52.8 mmanodised hub shellTechnology:E-Thru E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear. Models:15 x 110 mm / 32 hole: Over Locknut Dimension:15 x 110 mm thru-axleSpoke Hole Count:32 holeFlange Distance (L/R):70.2 mm (29.8 mm/40.4 mm)Partial Bolt Circle Diameter (L/R):44 mm/44 mmManufacturer Number:EHBTC50015BBContents:1 x Shimano HB-TC500-15-B front hub Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
