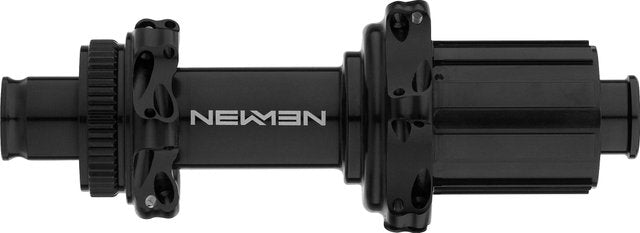

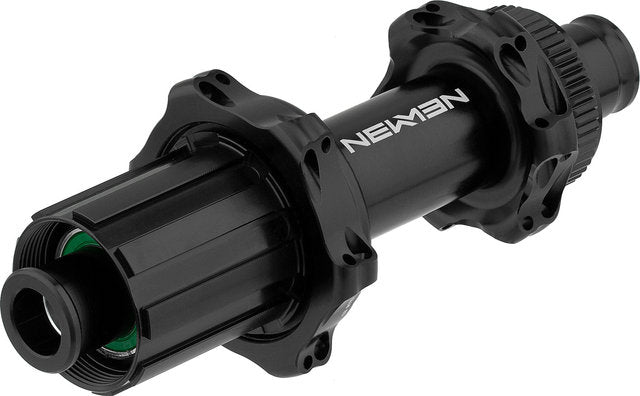

Product Description The FADE Road hub from NEWMEN is e-bike compatible, and thanks to its newly-developed freehub, it is quieter and more fail-safe than ever. Thanks to more material in key areas, this rear wheel version with centre lock brake mount is extremely reliable. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Series:FADEApplication:RoadBrake Type:Center Lock DiscFreehub Body Type:3 pawls, 33 tooth pitchTechnical Information:Body Material:AluminiumBearings:4 deep groove ball bearingsSeals:double sealedModels:12 x 142 mm / 24 hole / Shimano: Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:ShimanoGearing:8-/9-/10-/11-speedManufacturer Number:90674 12 x 142 mm / 24 hole / SRAM XDR: Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:SRAM XDRGearing:11-/12-speedManufacturer Number:90673 12 x 142 mm / 28 hole / Shimano: Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:ShimanoGearing:8-/9-/10-/11-speedManufacturer Number:90703 12 x 142 mm / 28 hole / SRAM XDR: Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:SRAM XDRGearing:11-/12-speedManufacturer Number:90702Contents:1 x NEWMEN FADE Road Straightpull hub (rear) Manufacturer: MG-Components GmbH & Co. KG Am Mühlbach 5c 87487 Wiggensbach Germany info@mg-components.de
