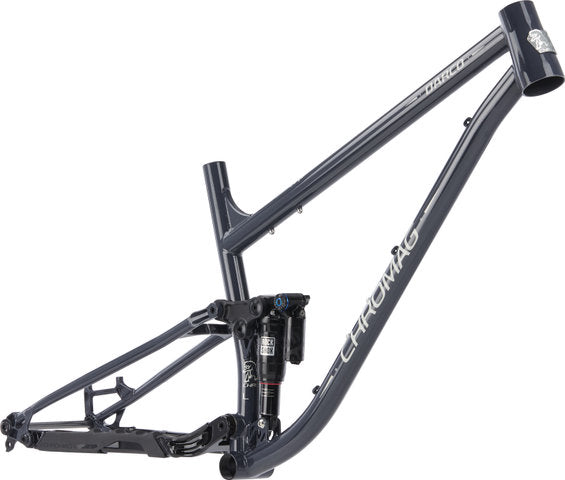

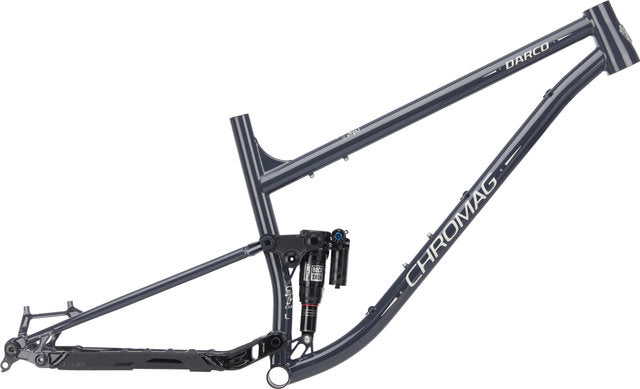

Product Description Discover the ultimate ride with our cutting-edge Chromag Darko All Mountain, MTB framekit, designed for those who demand both high performance and durability. This frame is engineered to accommodate a 1 1/8" - 1.5" tapered steerer tube, ensuring a perfect fit for modern suspension forks with a recommended travel of 150 mm. The frame's steel (CrMo) construction offers an exceptional balance of strength and responsiveness, while the aluminum rear triangle keeps the weight down and enhances maneuverability on tough trails. Featuring a Four-Bar Linkage kinematics system, this frame delivers 45 mm of shock travel via a Trunnion Mount rear shock, providing a plush ride that can handle the roughest terrain without sacrificing pedaling efficiency. The frame is compatible with disc brakes, supporting up to 180 mm rotors for unmatched stopping power. With a housing width of 73 mm and BSA bottom bracket standard, it's ready for the most popular cranksets, supporting a maximum chainring size of 1x 34T. Designed for both men and women, this frame eliminates the possibility of a front derailleur, focusing on a streamlined 1x drivetrain setup for simplicity and reliability. The 31.6 mm seat tube diameter is ready for a wide range of dropper posts, and the 35.0 mm saddle clamp ensures a secure fit. The frame accommodates up to 29 x 2.5" tires, providing ample clearance for tackling any trail conditions, and the 12 x 148 mm (Boost) wheel standard enhances stiffness and control. Whether you're shredding local trails or tackling all-mountain adventures, this frame is built to offer an exhilarating ride with its advanced geometry and trail-ready features. Product Specifications: Application:All Mountain, MTB Kinematics:Four-Bar Linkage Rear triangle material:Aluminium Brake Type:disc Wheel size:29" Housing Width:73 mm seat clamp type:Bolt Frame material:Steel (CrMo) Gender:Women's, Men´s Technical Information: Saddle Clamp (Ø):35,0 mm Front Derailleur Mount:No Front Derailleur Mount Possible Rear Shock Mount:Trunnion Mount Shock Length:165 mm Shock Travel:45 mm Recommended Steerer Tube:1 1/8" - 1,5" tapered Seatpost diameter:31,6 mm Brake Mount:Disc PM7 (Direct Mount 180 mm) Wheel Standard:12 x 148 mm (Boost) Recommended Fork Travel:150 mm Shock Mount Width:20 x 8 mm Bottom bracket standard:BSA dark grey | 12 mm Thru Axle | S: Bottle Cage Mounts:1 Axle Standard:12 mm Thru Axle Clamp Diameter:35 mm dark grey | 12 mm Thru Axle | M: Bottle Cage Mounts:1 Axle Standard:12 mm Thru Axle Clamp Diameter:35 mm dark grey | 12 mm Thru Axle | M/L: Bottle Cage Mounts:1 Axle Standard:12 mm Thru Axle Clamp Diameter:35 mm dark grey | 12 mm Thru Axle | L: Bottle Cage Mounts:1 Axle Standard:12 mm Thru Axle Clamp Diameter:35 mm dark grey | 12 mm Thru Axle | XL: Bottle Cage Mounts:1 Axle Standard:12 mm Thru Axle Approved For: Chainring Count Compatibility:1x Max. Disc Brake Size Rear:180 mm Max. Chainring Size:1x 34T Max Tire Size Rear:29 x 2,5" Product Features: High-performance mountain bike frame designed for all-mountain and MTB enthusiasts, compatible with 29" wheels.Features a sturdy steel (CrMo) frame with aluminium rear triangle and four-bar linkage kinematics for responsive handling.Accommodates a 1 1/8" - 1.5" tapered steerer tube and a 150 mm fork travel, optimizing front-end stiffness and control.Supports disc brakes with a direct mount for up to 180mm rotors, ensuring reliable stopping power in all conditions.Designed for both men and women, with a shock travel of 45 mm and a trunnion mount rear shock setup for smooth rides.Compatible with 1x drivetrains up to 34T, featuring a BSA bottom bracket standard and a 31.6 mm seatpost diameter for easy customization. Geometry: dark grey | 12 mm Thru Axle | S: Head Tube Length:100 mm Recommended Rider Height:155 - 168 cm Seat Tube Length:350 mm Head Tube Angle:64 Seat Tube Angle:78 Chainstay Length:435 mm Stack:617 mm Standover Height:677 mm Wheelbase:1214 mm Reach:450 mm BB Drop:39 mm Effective Top Tube Length:584 mm dark grey | 12 mm Thru Axle | M: Head Tube Length:100 mm Recommended Rider Height:162 - 173 cm Seat Tube Length:380 mm Head Tube Angle:64 Wheelbase:1236 mm Reach:472 mm Chainstay Length:435 mm BB Drop:39 mm Stack:617 mm Standover Height:707 mm Seat Tube Angle:78 Effective Top Tube Length:603 mm dark grey | 12 mm Thru Axle | M/L: Head Tube Length:105 mm Recommended Rider Height:170 - 183 cm Seat Tube Length:410 mm Head Tube Angle:64 Stack:622 mm Standover Height:736 mm Wheelbase:1256 mm Reach:490 mm Chainstay Length:435 mm Seat Tube Angle:78 BB Drop:39 mm Effective Top Tube Length:622 mm dark grey | 12 mm Thru Axle | L: Seat Tube Length:440 mm Head Tube Length:115 mm Recommended Rider Height:180 - 190 cm Head Tube Angle:64 Stack:631 mm Standover Height:765 mm Wheelbase:1284 mm Reach:514 mm Chainstay Length:435 mm Seat Tube Angle:78 BB Drop:39 mm Effective Top Tube Length:648 mm dark grey | 12 mm Thru Axle | XL: Head Tube Length:125 mm Recommended Rider Height:188 - 198 cm Seat Tube Length:470 mm Head Tube Angle:64 Stack:640 mm Standover Height:795 mm Wheelbase:1305 mm Reach:530 mm Chainstay Length:435 mm Seat Tube Angle:78 BB Drop:39 mm Effective Top Tube Length:666 mm Manufacturer Number: dark grey | 12 mm Thru Axle | S: 201-049-001 dark grey | 12 mm Thru Axle | M: 201-049-003 dark grey | 12 mm Thru Axle | M/L: 201-049-005 dark grey | 12 mm Thru Axle | L: 201-049-007 dark grey | 12 mm Thru Axle | XL: 201-049-009 Contents: 1 x Chromag Darco frame 1 x RockShox Super Deluxe Ultimate RCT shock 1 x Rear axle 148 x 12 mm 1 x Chainstay protector 1 x Derailleur hanger Manufacturer: Chromag Bikes 1121 Industrial Way Squamish BC V8B 0H1 Canada info@chromagbikes.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
