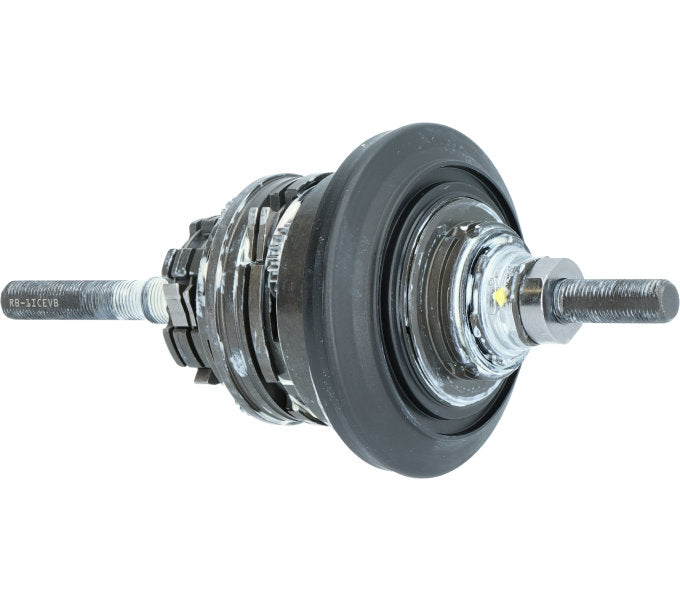

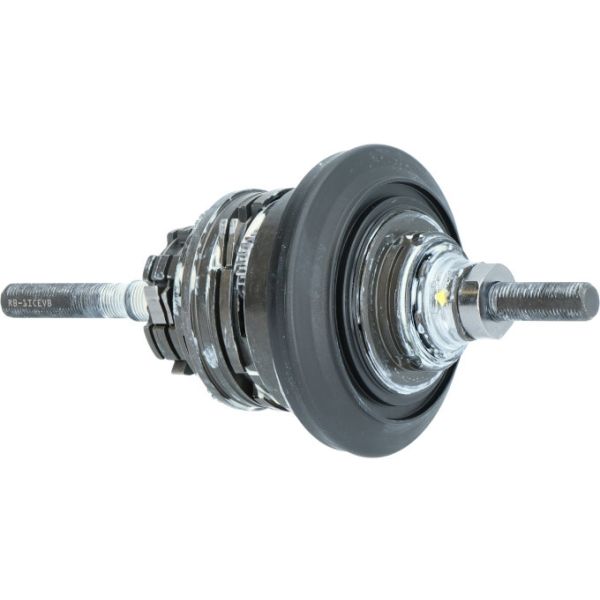

Compleet binnenwerk voor Shimano Nexus 7 versnellingsnaaf SG-C3001-7R / SG-C3000-7R / SG-7R50 / SG-7R46
- Aslengte: 182 mm

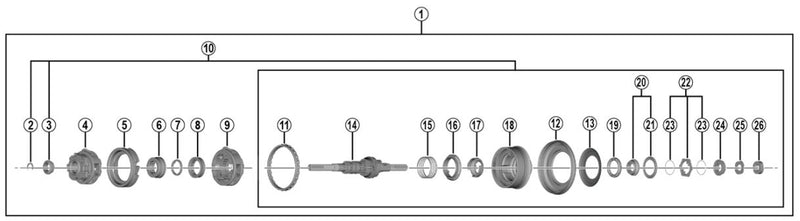

- Bestaande uit de volgende onderdelen:
- 2 Y30807000 Stop Ring for Carrier Guide 2 A A
- 3 Y33E03000 Carrier Guide 2
- 4 Y3EW98020 Carrier Unit 2
- 5 Y38P98040 Ring Gear Unit 2
- 6 Y3EV09000 Sun Gear 3
- 7 Y38R11000 Sun Gear Guide Ring 2
- 8 Y3EV08000 Sun Gear 2
- 9 Y38P98050 Carrier Unit 1
- Y3ET98030 Carrier guide 2 / Axle & Driver Unit (Axle Length 182 mm)
- 11 Y33091800 Ball Retainer M (3/16" x 26)
- 12 Y35C07000 Right Hand Dust Cap B
- 13 Y33Z26000 Right Hand Dust Cap C
- Y3ET98050 Axle Unit (Axle Length 182 mm)
- 15 Y33024000 Return Spring A
- 16 Y33Z10000 Gear Shifting Cam
- 17 Y3EV02000 Feed Cam
- 18 Y35D98120 Driver Unit
- 19 Y33091600 Ball Retainer F (3/16" x 12)
- 20 Y39098160 Right Hand Cone w/Seal
- 21 Y35K07000 Right Hand Cone Seal
- 22 Y33F98040 Driver Plate w/Seal
- 23 Y33012000 Driver Plate Seal
- 24 Y33E98120 Lock Washer
- 25 Y33Z08000 Stop Washer
- 26 Y30803020 Right Hand Lock Nut (6 mm)Shimano nexus 7 binnenwerk rollerbrake y3et98010
